Built with Viper

Four integration test projects validating the Viper 3-tier architecture on different stacks.

Native Integration

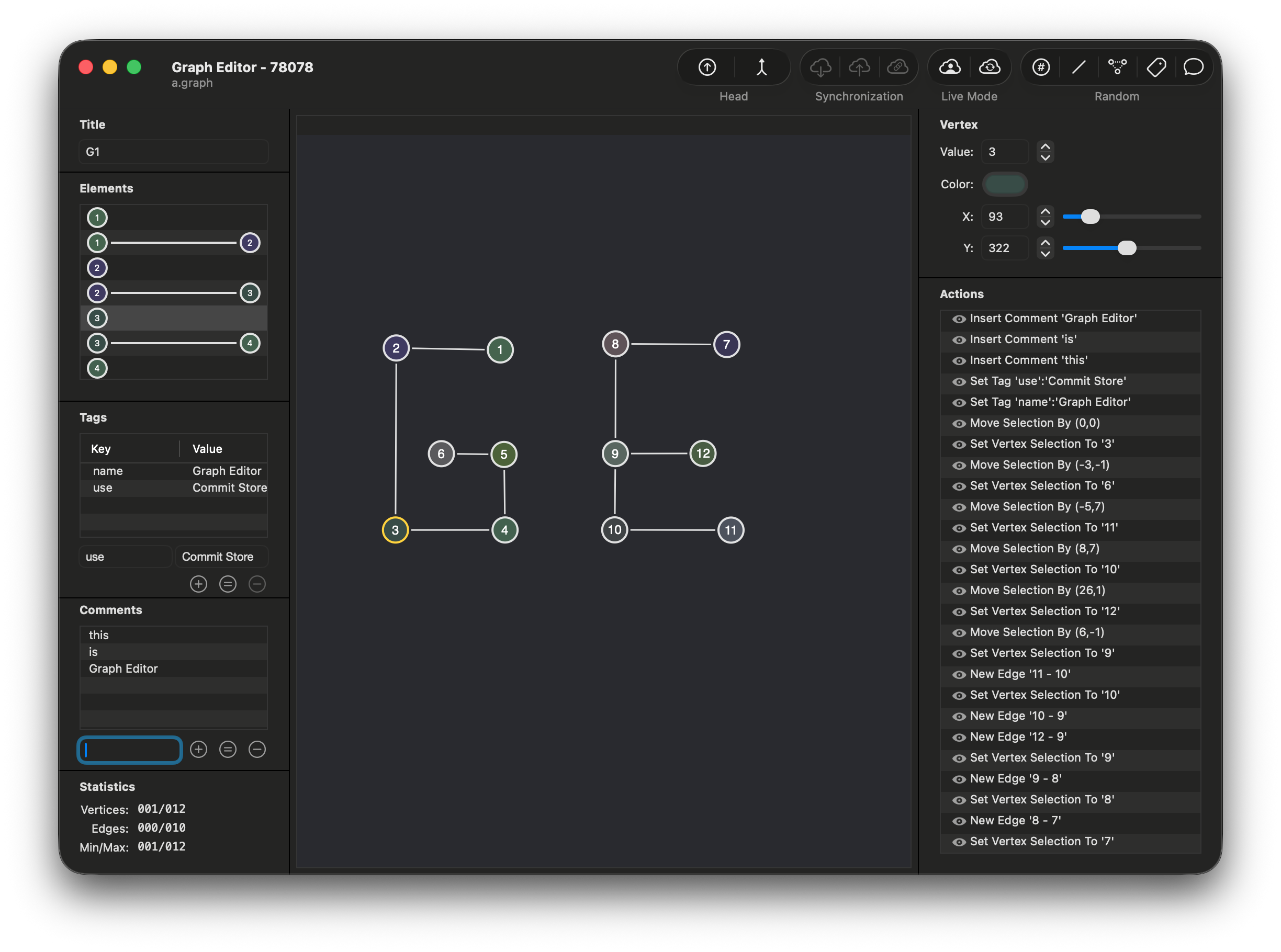

Graph Editor (AppKit)

Native macOS application validating C++ 3-tier integration with AppKit

273 Lines DSM

15,592 Lines Generated

57x Amplification

66% Code Generated

Code Breakdown (23,552 lines total)

Generated C++

11,015 (46.8%)

Generated Python

4,577 (19.4%)

UI (AppKit)

4,857 (20.6%)

Business C++

2,433 (10.3%)

Business Python

670 (2.8%)

Key Features

Node-based graph structure with typed connections
Multiple attachments per concept
Full undo/redo via commit history
Embedded Python scripting
Automatic Python Binding of C++ business logic
Multi-user editing via CommitDatabaseServer

Private laboratory application. Validates that the Viper C++ runtime integrates cleanly into a native macOS UI layer with embedded Python.

C++ Python AppKit macOS

View DSM Model

Python Integration

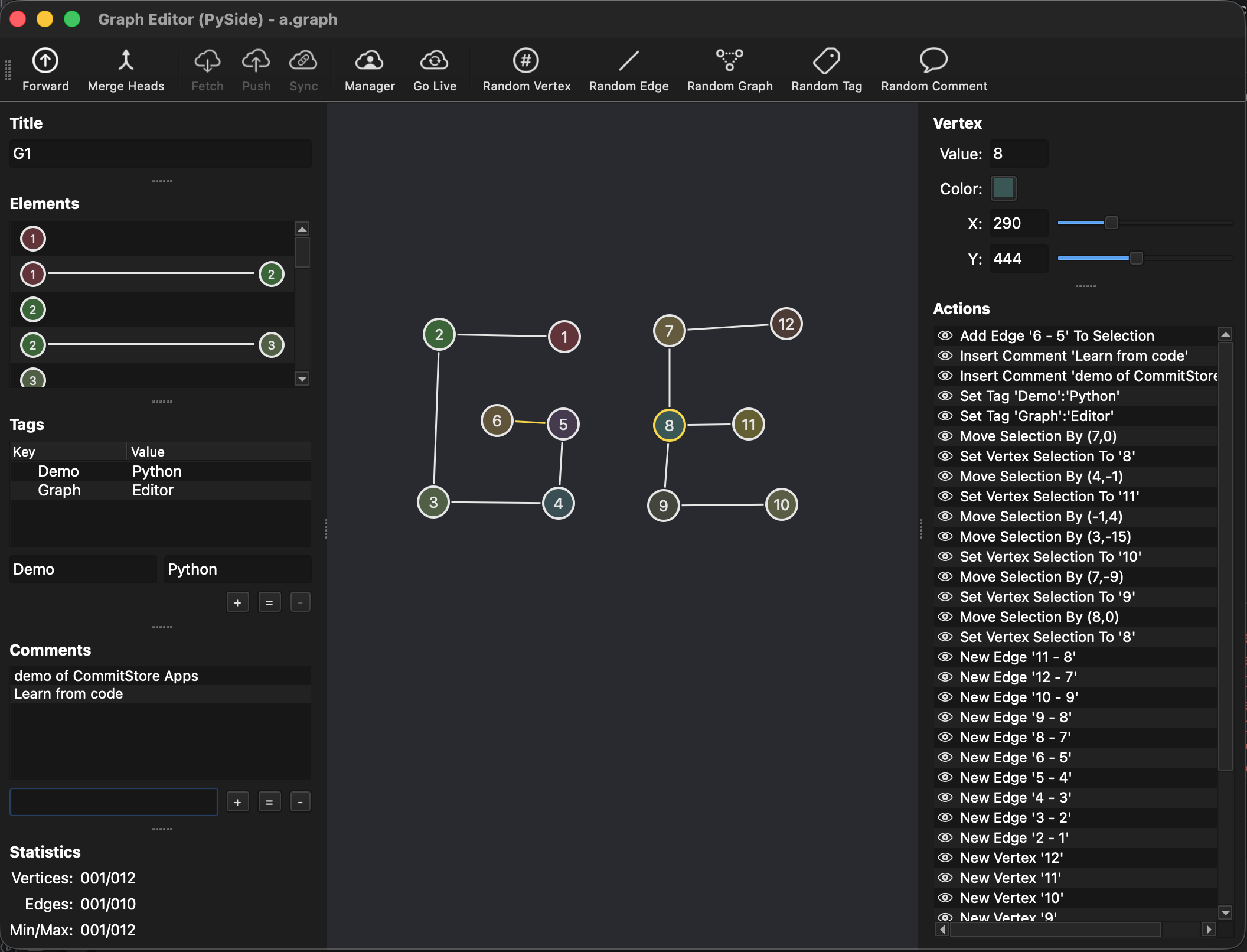

Graph Editor (Qt Widgets)

Cross-platform application validating Python 3-tier integration with Qt

273 Lines DSM

3,466 Kibo Generated

13x Amplification

28,875 Total Lines

Code Breakdown (28,875 lines total)

Qt Generated

14,673 (51%)

Kibo Generated

3,466 (12%)

UI (Qt Widgets)

7,982 (28%)

Business Python

2,754 (9%)

Key Features

Same DSM model as the AppKit version
Pure Python application over dsviper
Interactive graph visualization with Qt Widgets
Full undo/redo via commit history
Documents browser, metadata inspector, commit program trace
Multi-user editing via CommitDatabaseServer

Demonstrates that the same DSM model powers both a native C++ application and a pure Python application. The 3-tier architecture is UI-agnostic.

Python Qt Widgets PySide6 Cross-platform

Download

Declarative Integration

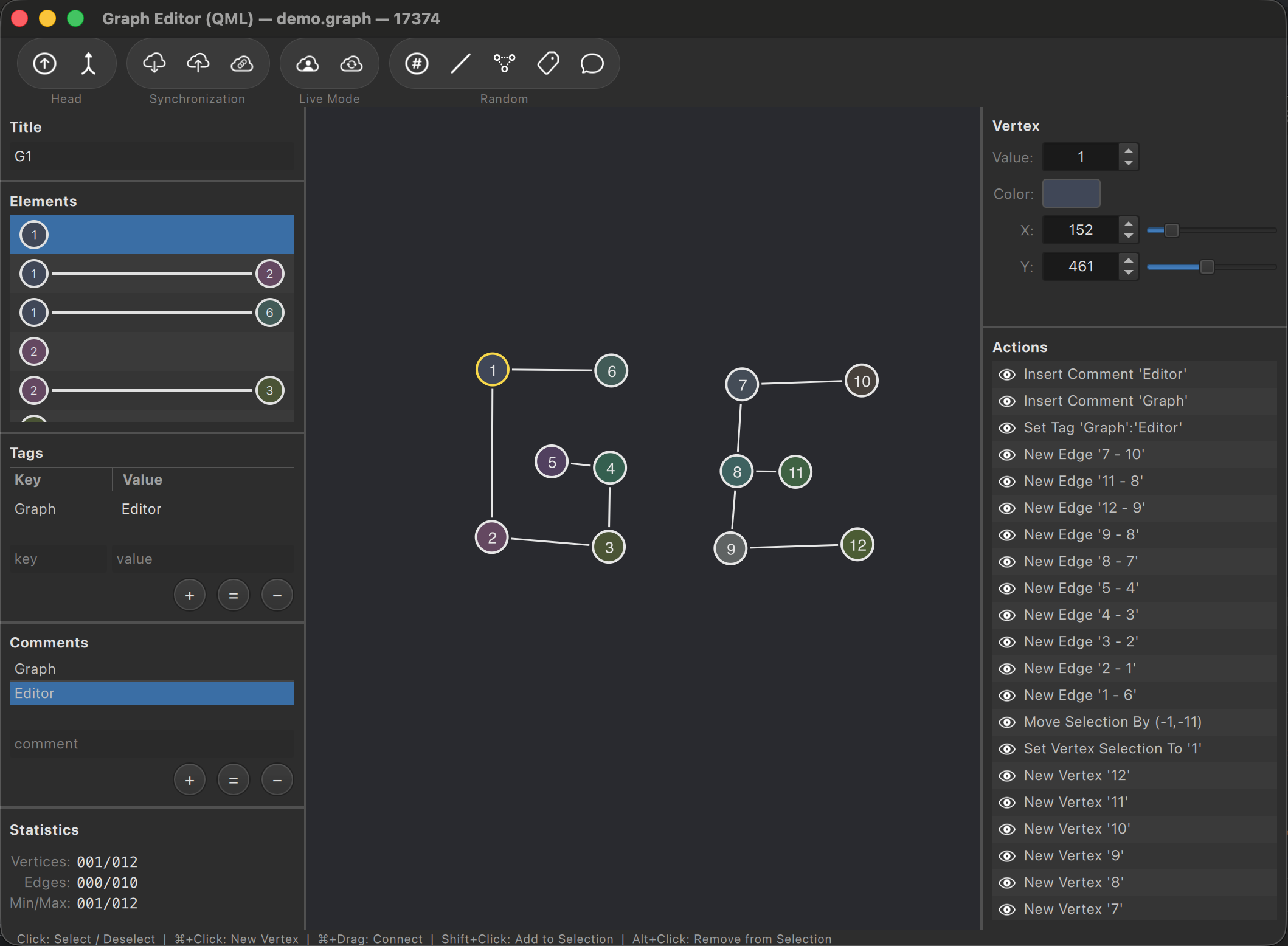

QML Stack

Third UI stack validating dsviper portability — declarative QML over the same runtime, split across three repositories

273 Lines DSM

3 Applications

3,466 Kibo Generated

22,006 Total Lines

Code Breakdown (22,006 lines total)

QML Declarative

6,500 (29.5%)

Kibo Generated

3,466 (15.7%)

Shared Models

5,937 (27%)

App Python

6,103 (27.7%)

Key Features

Same DSM model as AppKit and Qt Widgets versions
Pure declarative UI (QML + Fusion style)
Full commit DAG with undo/redo
Integrated Python editor with auto-completion
Three repositories: ge-qml, dsviper-tools-qml, dsviper-components-qml
Multi-user editing via CommitDatabaseServer

Third proof of UI-agnosticism: same CommitStore, same DSM model, same Kibo-generated infrastructure — only the presentation tier changes, from Qt Widgets to QML. Now split across three repositories: Graph Editor, the database tools (dbe / cdbe), and the shared components library.

Python QML PySide6 Cross-platform

Download

Torture Test

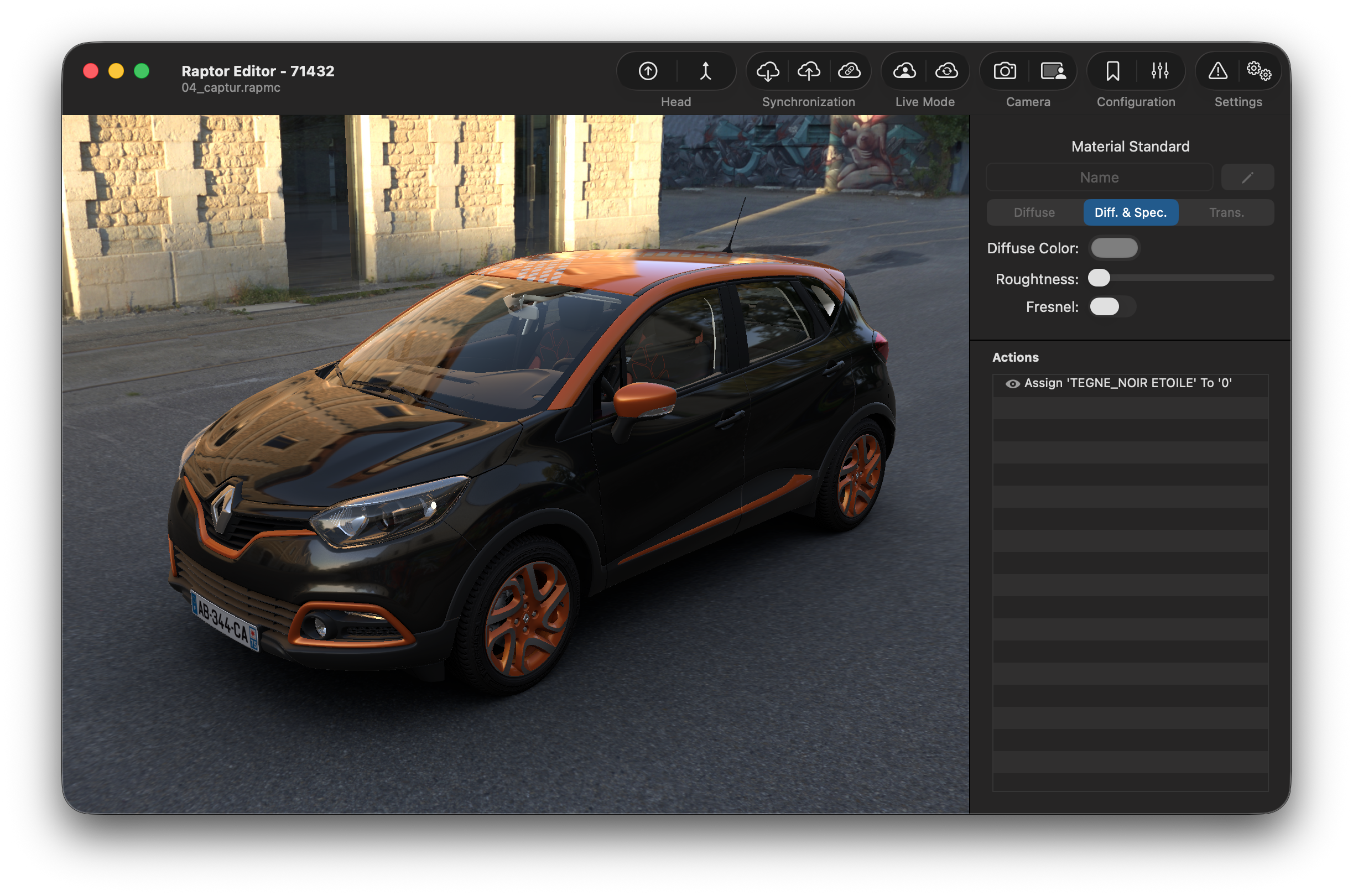

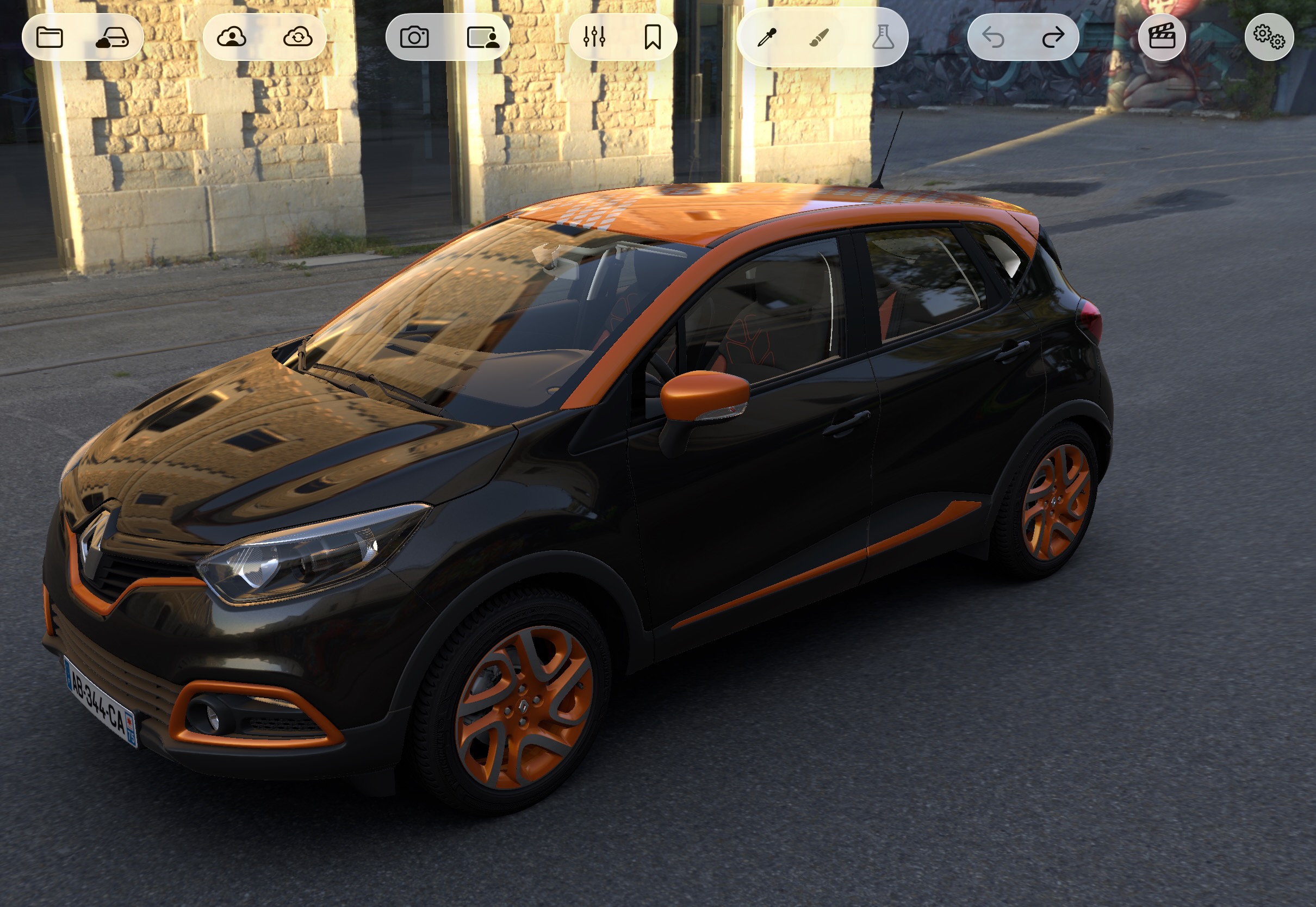

Raptor Editor

The only torture test for the Digital Substrate technology: large DSM, large data volumes, industrial-complexity data model

2,003 Lines DSM

126,182 Lines Generated

63x Amplification

69% Code Generated

Layer Pyramid (181,258 lines total)

Kibo Generated

126,182 (69.6%)

RaptorMetal

27,214 (15.0%)

RaptorLogic

14,308 (7.9%)

Apps (macOS+iOS)

9,433 (5.2%)

RaptorMath

4,118 (2.3%)

21 DSM Domains

Model, Camera, Material, Mesh, Lighting, Timeline, Kinematics, Surface, Texture, Environment...

Key Features

3D geometry with materials and lighting
Animation timelines
Large blob handling (textures, meshes)
Full undo/redo
Commit history
Embedded Python
Automatic Python Binding for C++ business logic
Multi-user editing via CommitDatabaseServer

C++ Python Metal MacOS iPadOS

View DSM Model

3-Tier Code Distribution

All four projects share the same DSM model. Only the UI and business layers change between stacks.

GE AppKit (Native)

66% Generated

24% UI

10% Business

GE Qt Widgets (Python)

51% Qt Gen.

12% Generated

28% UI

9% Business

QML Stack (Declarative)

16% Generated

30% QML

55% Python

Raptor Editor (Torture Test)

69% Generated

25% Business

6% UI

Generated Infrastructure (Kibo)

Qt Generated

QML Declarative

UI (Manual)

Business Logic (Manual)

Stable Infrastructure Ratio

~66-69% generated code across AppKit and Raptor projects. Kibo's value scales predictably.

UI-Agnostic Architecture

Same DSM model powers AppKit, Qt Widgets, and QML. The QML port eliminates the generation layer entirely — pure application code over dsviper.

Declarative Eliminates Boilerplate

GE QML achieves the same functionality as GE Qt Widgets with 22K lines vs 29K — QML's declarative bindings replace imperative widget code.

Application Pattern

All three applications use the CommitStore Pattern for unified transactional state management:

UI Layer AppKit, Qt Widgets, QML

↓ dispatch actions

CommitStore Transactional state with history

↓ persist

Database + Commit Engine SQLite + DAG versioning

Undo/Redo

Built-in via commit history traversal

Collaboration

Branch and merge for multi-user editing

Audit Trail

Complete history of all changes
